Serving environment-specific configurations to web applications

Why

Web applications are not just a single URL. When a product is being developed and maintained, it usually has multiple environments. For example, there can be different environments such as production, acceptance, testing, development, early preview, beta, etc. Each environment has its own URL and may require different service endpoints, API keys, and feature configurations. These settings need to be saved and included with the application, depending on the specific environment. In this article, we will explore various ways of storing and delivering these configurations. We will also look at the “runtime configuration” option as an example. This approach doesn’t require configuration to be a part of the application itself; configuration can exist in a separate service. It decouples the build and runtime environments.

Ways to deliver configurations to web applications

There are three typical solutions used in web development to deliver environment-specific configurations:

Build time configuration is usually stored in the code or CI/CD platform. It is applied during the build time and becomes part of the JavaScript bundle. Basically, bundlers replace string templates and environment variables with configuration values by the given environment. See Webpack Define Plugin

Pros:

Cons:

Deployment time configuration is stored in the deployment platform. It is applied during the deployment time. So, the build process does not depend on the environment, but the deployment does. See Octopus Deploy platform.

Pros:

Cons:

Runtime configuration is stored in a storage like a database. It is applied during the application load. The configuration service typically “knows who is asking” or a requestor can ask for a specific configuration based on business logic, device, location, locale, internal state, etc. See LaunchDarkly platform.

Pros:

Cons:

This approach also opens a lot of possibilities, for instance:

My favorite option is the “Runtime configuration”. I like it because it is easy to use for teams that need to manage applications with different environments, conduct experiments, and use feature toggles. It also separates the different stages of delivering an application, such as building, deploying, and running it. Let’s take a look at one of the many ways to design and implement such a system.

Implementation of runtime configuration service

Requirements for the service

Lets consider the next basic requirements for a configuration service:

Let’s also take the next optional requirement to make this trivial service more interesting:

Example web application requirements

For the demonstration of service we need an actual consumer web application. Next requirements will be taken for it:

System overview

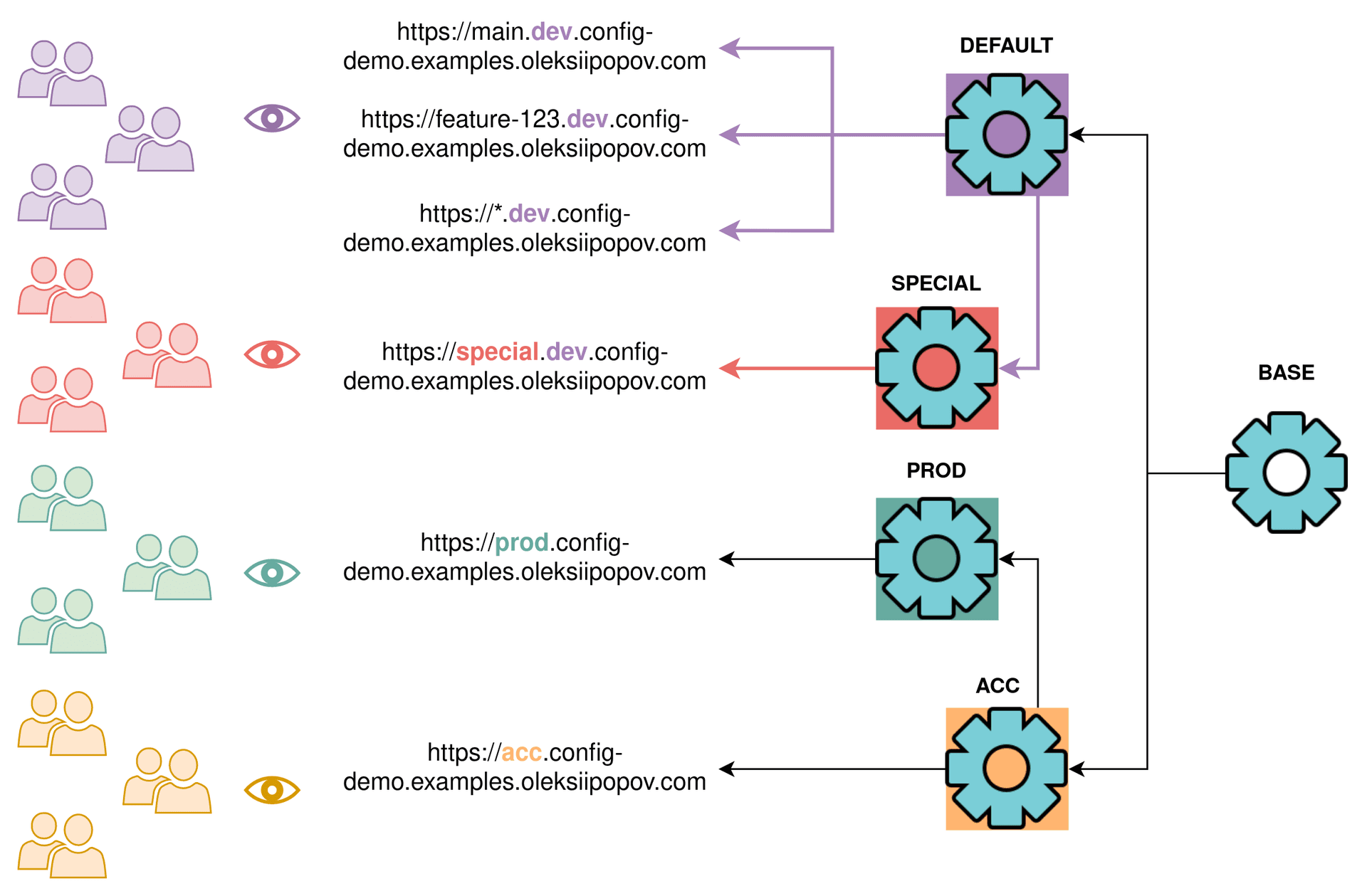

Taking all requirements into consideration one can imagine the next diagram of serving environment-specific configurations to web clients based on the environment domain names. Visitors, domain parts and configurations are color coded for convenience. Note, that the rendered web content also will use correspondent colors later.

Example of serving environment-specific configurations
Example of serving environment-specific configurations

Imagine that we have a web app with multiple environments:

If no special configuration is needed for an environment (*.dev.config-demo.examples.oleksiipopov.com), the default fallback configuration should be served. If something is supposed to be different, then the separate environment config will be used.

Configuration inheritance simplifies the maintenance efforts. You don’t have to synchronize dozens of big similar JSONs when you inherit the repeated parts.

Service implementation

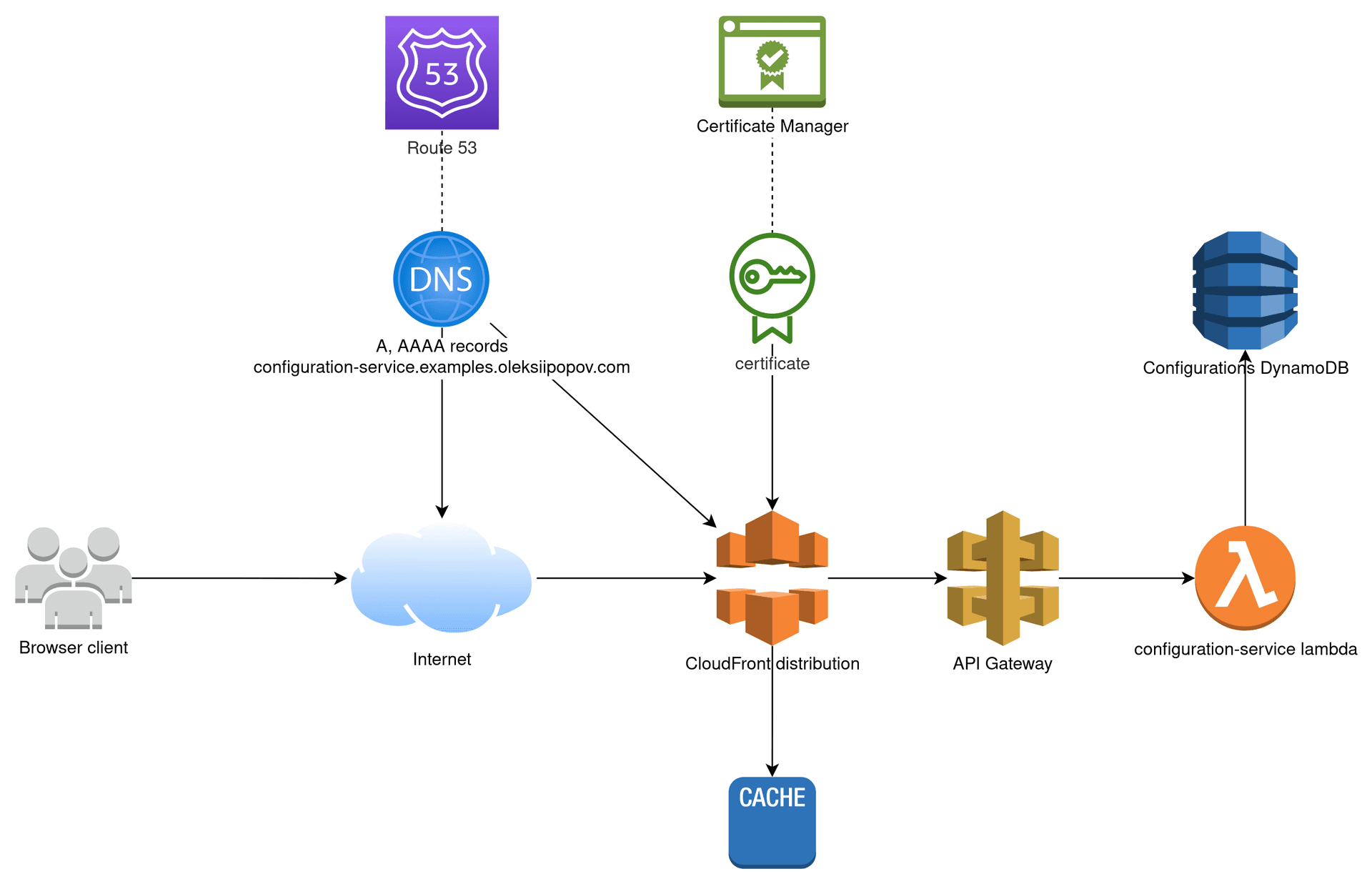

AWS design for such configuration service system can be next

AWS design for the configuration service
AWS design for the configuration service

Configurations could be stored in any database or a file storage. Dynamo DB is selected because of 2 reasons:

Configuration service lambda does the main job here. It has 2 routes in API:

API Gateway proxies requests from CloudFront to Lambda. Theoretically, API Gateway and Lambda combination is enough, but we need a good cheap caching and low latency like CDNs provide.

CloudFront acts as a content delivery network (CDN) that operates in multiple regions. It has a fast response time and uses efficient caching mechanisms at both the edge and origin levels. Furthermore, it adds extra information to the requests and responses, such as headers like “Cloudfront-Viewer-Country” and “Cloudfront-Viewer-City”. These headers are useful when you want to centrally manage application configurations that are based on the viewer’s location.

The source code of the service and its hosting can be found here: https://github.com/AlexeyPopovUA/configuration-service.

Web example application implementation

I have also made a basic website that demonstrates how a configuration service can alter the appearance of the same web page in various environments. There is a single index.html file that displays a square. The square’s color is determined by the configuration service. The service’s configuration change depending on the environment, including the “color” setting. This means that when the website loads, the square will appear in different colors depending on the environment. If the service is unable to resolve the configuration or environment is not in a white list, an error message will be shown on a dark red background.

The source code of the example web app and it’s hosting can be found here: https://github.com/AlexeyPopovUA/configuration-service-examples.

AWS design of the example web app can be omitted for simplicity.

So, the application:

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta name="robots" content="noindex"> <!-- Ask crawlers not to index the page -->
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Example Page</title>
    <script src="https://cdn.tailwindcss.com"></script>
</head>
<body>
<div class="flex justify-center items-center h-screen">
    <div class="square w-[25vw] h-[25vw] min-w-[350px] min-h-[350px] flex justify-center items-center text-white p-4 border-4 border-slate-800">
        <p id="response-text"></p>
    </div>
</div>

<script>
    const responseEl = document.getElementById('response-text');
    const squareEl = responseEl.closest(".square");
    // Make GET request to the specified URL
    fetch('https://configuration-service.examples.oleksiipopov.com/edge')
        .then(response => response.json())
        .then(data => {
            console.log('data:', data);
            responseEl.textContent = data.configuration.environment;
            squareEl.classList.add(`bg-[${data.configuration.color}]`);
        })
        .catch(error => {
            console.error('Error:', error);
            responseEl.textContent = `${error.message}`;
            squareEl.classList.add("bg-red-800");
        });
</script>
</body>
</html>

I made a hosting setup that serves one html file for all environments. When the application loads, the script uses the color property from the service response json and applies a matching color class to the square element. It also takes the name of the configuration and displays it inside.

Showtime!

Now, let’s take a look at the environments.

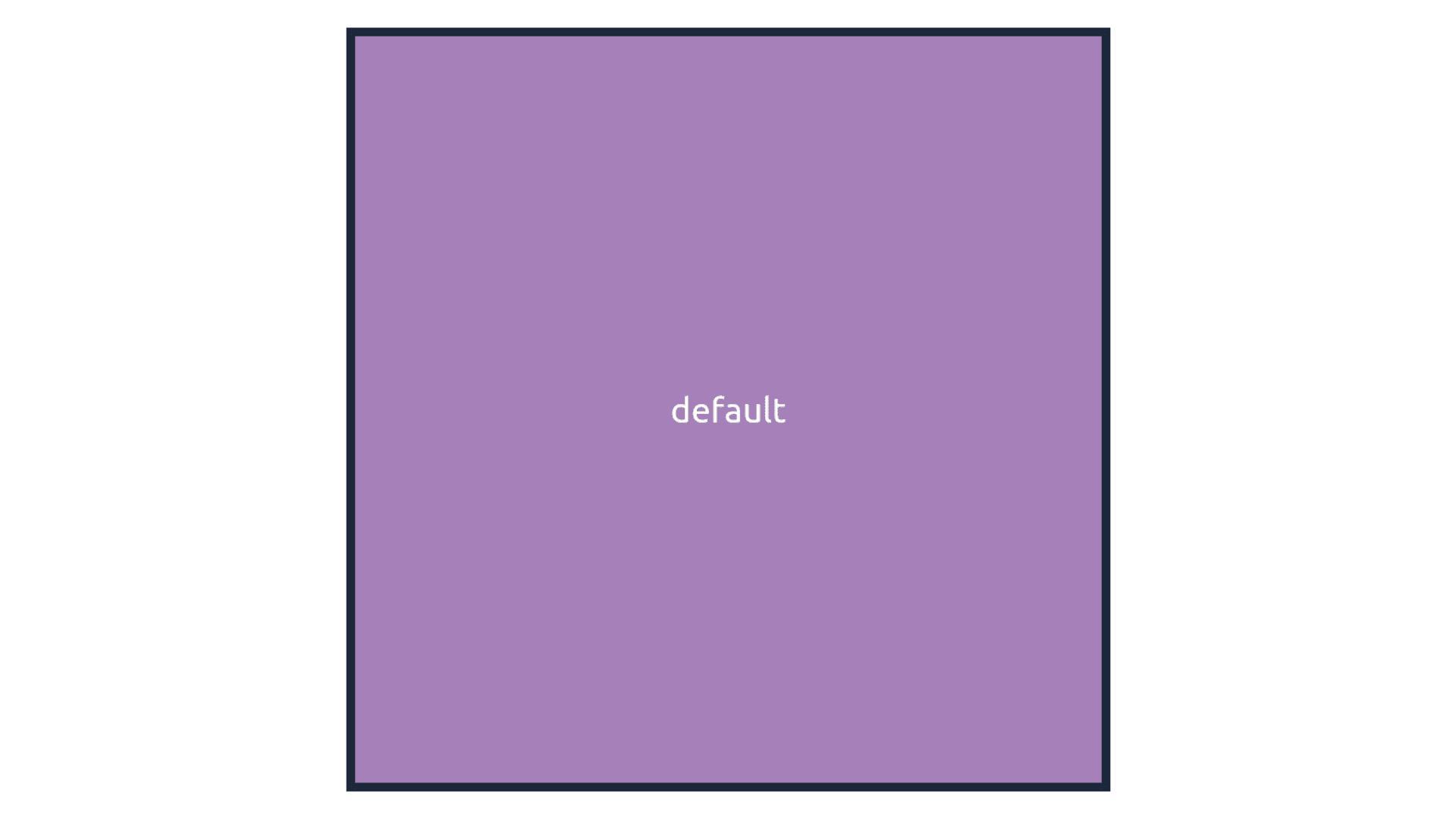

All Dev *.dev.config-demo.examples.oleksiipopov.com environments:

All Dev environments
https://feature-123.dev.config-demo.examples.oleksiipopov.com/index.html, https://main.dev.config-demo.examples.oleksiipopov.com/index.html

As visible from this screenshot, our application rendered a color-coded rectangle with matched environment name. Additionally, the application received custom response headers with data, detected by AWS:

access-control-expose-headers: Content-Encoding,Content-Type,Cloudfront-Viewer-Country,Cloudfront-Viewer-City
access-control-allow-origin: https://prod.config-demo.examples.oleksiipopov.com
cloudfront-viewer-city: Amsterdam
cloudfront-viewer-country: NL

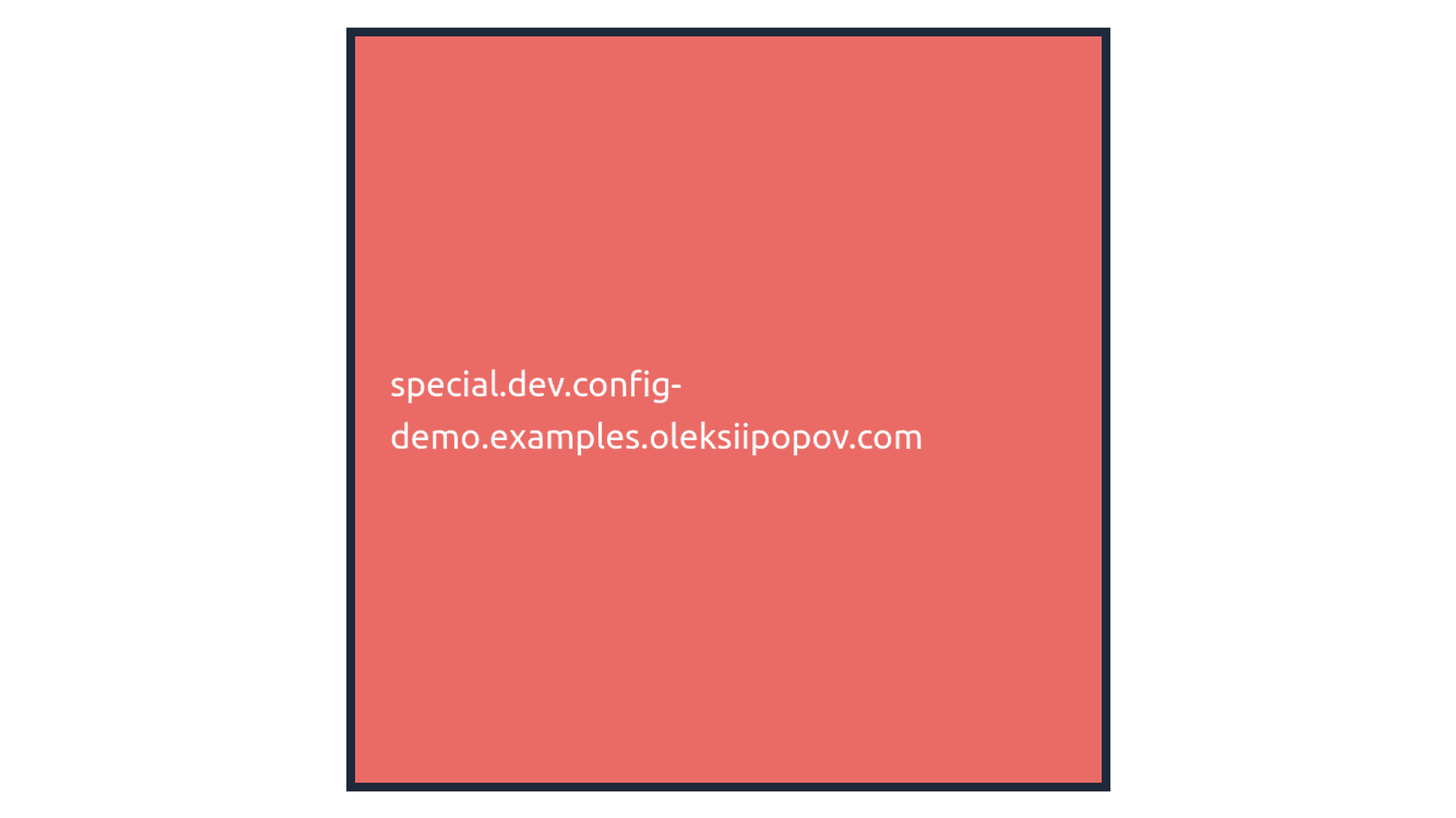

A special Dev special.dev.config-demo.examples.oleksiipopov.com environment that has its own configuration:

A special Dev environment
https://special.dev.config-demo.examples.oleksiipopov.com/index.html

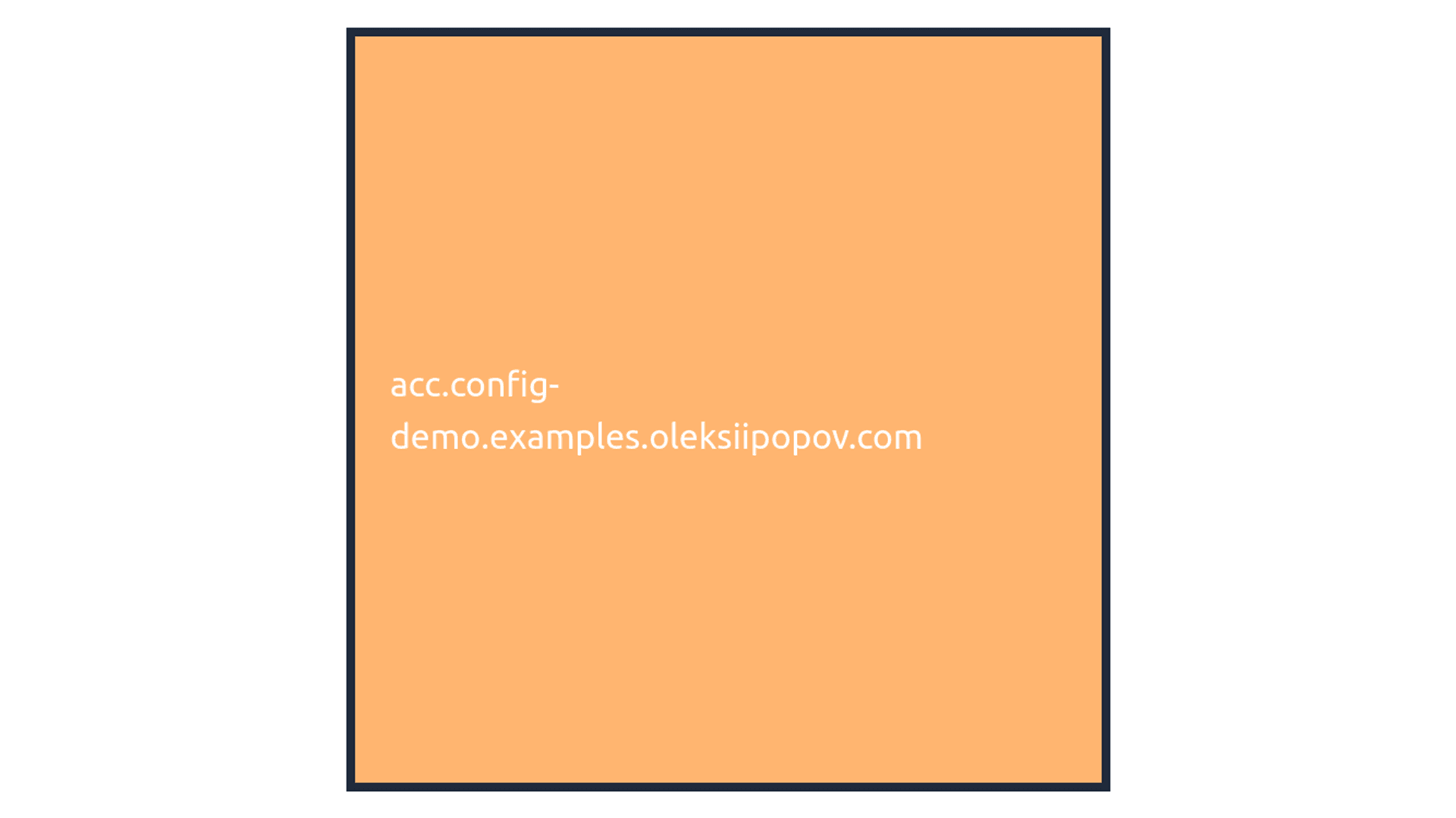

Acceptance environment acc.config-demo.examples.oleksiipopov.com:

Acceptance environment
https://acc.config-demo.examples.oleksiipopov.com/index.html

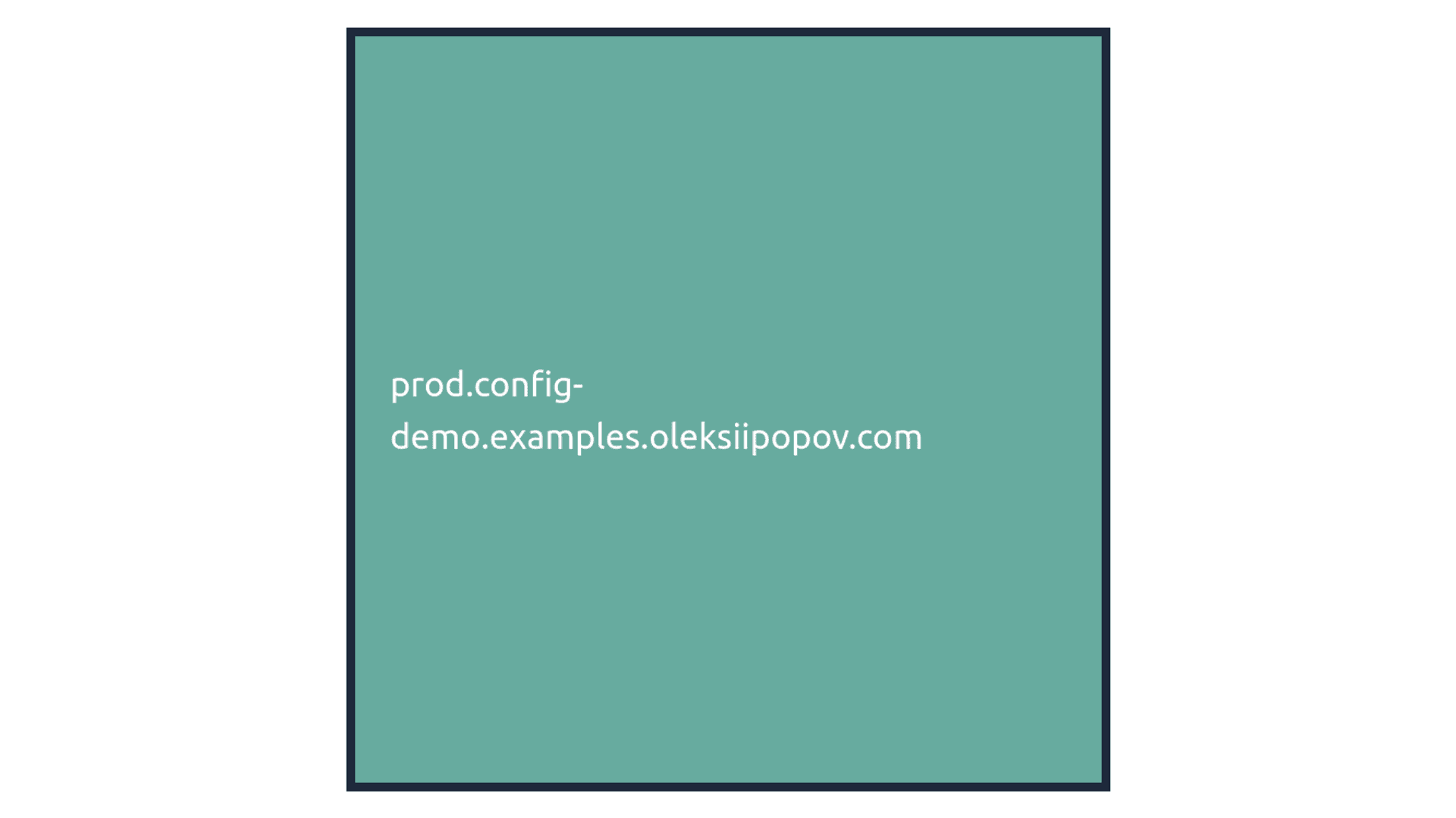

Production environment prod.config-demo.examples.oleksiipopov.com:

Production environment
https://prod.config-demo.examples.oleksiipopov.com/index.html

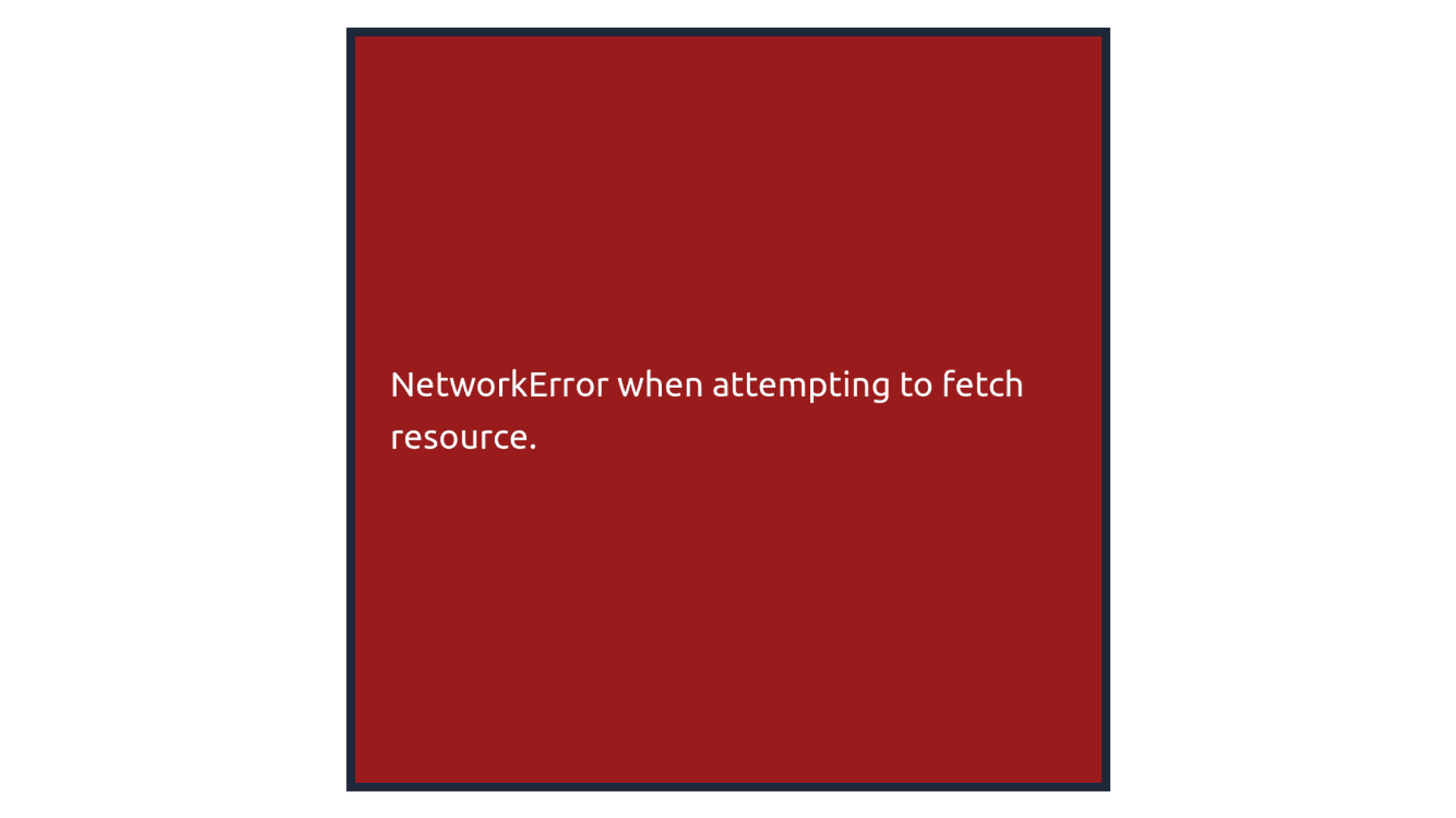

Any random environment, which is not supported by our configuration service should fail with CORS error:

Any random environment
https://random.config-demo.examples.oleksiipopov.com/index.html

So the same application can look and behave differently on different environments. Isn’t it awesome?

Configurations data

Let's see how the actual configuration objects look like. I’ve implemented the hierarchy exactly the way it is described on the diagram "Example of serving environment-specific configuration". Inheritance is implemented via merging configurations based on environment and extends keys.

Please note, that each of these objects contain keys for inheritance demonstration: "from-base": 1, "from-default": 1, "from-acc": 1, "from-prod.config-demo": 1.

So, the next responses arrive for correspondent environments:

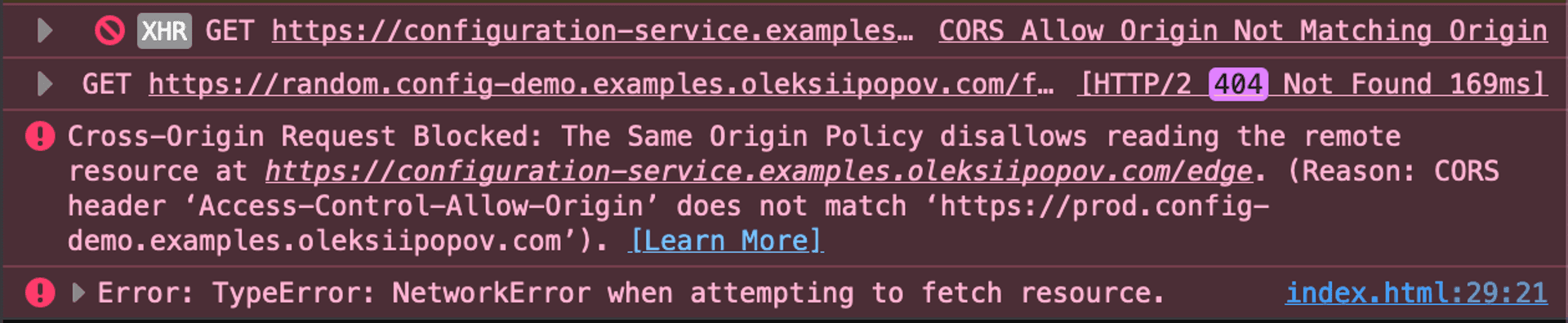

And finally, the random environment that was not whitelisted got this:

Console error for non-whitelisted environment
Console error for non-whitelisted environment

Our configuration allows us to inherit configurations and whitelist specific environments.

Getting environments by request parameter

What about retrieving objects based on a search parameter? An extra request is available in our service – GET https://configuration-service.examples.oleksiipopov.com/by-key?environment=<key>, where key is the same thing as the Origin request header in previous examples.

For a shorter URL and re-using of configuration objects purposes I’ve added a new environment name to our DB:*

{
    "environment": "production-by-key",
    "extends": "prod.config-demo.examples.oleksiipopov.com"
}

It only extends our production environment for web. It is sort of alias.

So, the GET request and response in cURL will look like this

curl -X GET --location "https://configuration-service.examples.oleksiipopov.com/by-key?environment=production-by-key"

Response headers

HTTP/2 200
server: CloudFront
content-type: application/json; charset=utf-8
content-length: 287
date: Mon, 03 Jul 2023 18:24:23 GMT
access-control-expose-headers: Content-Encoding,Content-Type,Cloudfront-Viewer-Country,Cloudfront-Viewer-City
x-powered-by: Express
access-control-allow-origin: https://prod.config-demo.examples.oleksiipopov.com
vary: Origin
age: 385
cloudfront-viewer-city: Amsterdam
cloudfront-viewer-country: NL
x-cache: Hit from cloudfront

Response payload

{
    "configuration": {
        "environment": "production-by-key",
        "description": "Description of the \"prod.config-demo.examples.oleksiipopov.com\" environment configuration",
        "from-base": 1,
        "color": "#67ab9f",
        "from-acc": 1,
        "extends": "prod.config-demo.examples.oleksiipopov.com",
        "from-prod.config-demo": 1
    }
}

As you can see, the production-by-key environment extends prod.config-demo.examples.oleksiipopov.com and has all inherited from-* debugging keys, including the "from-prod.config-demo": 1.

In case of non-existent or non-white listed keys our service returns 403 (Forbidden).

That’s it

I hope you liked the idea of providing configuration based on the environment of the requester. The proposed implementation is a simple solution that has already shown its effectiveness in a few real-world projects.

There is always room for making things better. For example:

Please share your ideas about this. Have you ever tried or applied similar solutions? I would be glad to know.
